We are leading SAF 2205 Male / Female Connector manufacturer in India

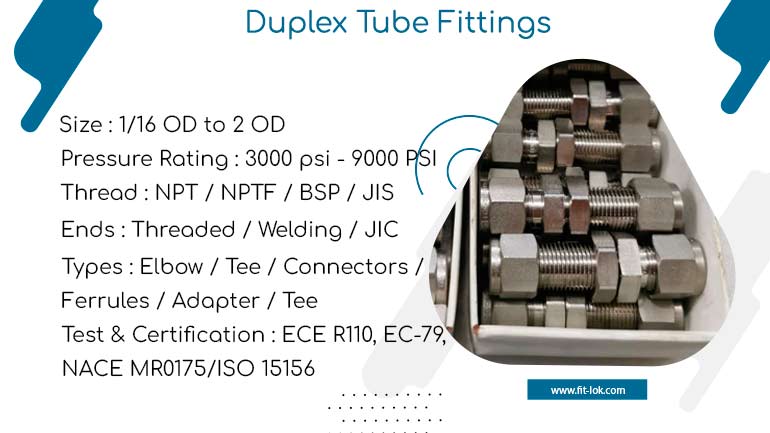

Fit-lok is a renowned dealer and supplier of Duplex 2205 Compression Tube Fittings, known for their ability to perform excellently in corrosive and fluctuating environments. The company has gained popularity in the market for providing products with outstanding characteristics. They use pure grades of UNS S31803 for the production of these Compression Tube Fittings, ensuring high-quality and reliable performance.
To maintain the quality of their products, Fit-lok sources raw materials from trustworthy suppliers. They subject the raw materials to various property tests and strict quality checks before using them in production. Only after confirming the material’s suitability, they proceed with the manufacturing process.
Efficient exporter of duplex 2205 tube fittings with easy installation and cost savings
The use of Duplex S31803 grade material in their Compression Tube Fittings makes them highly resistant to stress, cracking, and corrosion. Additionally, these fittings can perform effectively in a wide range of temperatures. Due to these exceptional properties, the products from Fit-lok are in high demand in the market.
With a focus on quality, reliability, and performance, Fit-lok continues to provide top-notch SAF 2205 Compression Tube Fittings that meet the needs of their clients and perform exceptionally well in demanding environments.
Table of content
- Duplex tube fittings Specification
- Types of Duplex compression fittings
- Duplex steel instrumentation fittings chemical composition
- DSS high pressure compression fittings mechanical composition
- Duplex 2205 tube fittings equivalent grade
- Size chart of Duplex 2205 compression fittings
- Duplex 1.4462 instrumentation fittings Pressure rating
| Types | Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories |
|---|---|
| Sizes | 1/8’’ to 2’’ and 3mm to 50mm |
| Ends | Threaded, Welding, JIC |
| Pressure Rating | 1000 Psi, 3000 Psi, 6000 Psi, 10000 Psi |
| Threads | NPT , BSPT, BSPP |
DSS high pressure compression fittings
duplex 2205 tube fittings
duplex 2205 compression fittings
duplex 1.4462 instrumentation fittings
SS 2205 high pressure compression fittings
DIN 1.4462 ferrule fittings
| Cr | Ni | Mo | C | N |
| 22.0-23.0 | 4.50-6.50 | 3.00-3.50 | .030 Max | 0.14-0.20 |
| Mn | Si | P | S | Fe |
| 2.00 Max | 1.00 Max | .030 Max | .020 Max | Balance |
Check out the density and heat resistance properties of our alloy 2205 compression fittings for optimal material selection.
| Duplex Stainless Steel | |
| Density | 7.805 |
| Melting Range,℃ | 1450 ℃ |
| Elongation % | 25 min. |
| Tensile Strength (Mpa) | 655 |
| Yield Strngth (Mpa) | 450 |
| Hardness (Brinell) | 293 max |
| UNS no. | Werkstoff No. |
| S31803 | 1.4462 |
Get your hands on DIN 1.4462 instrumentation fittings at affordable prices from the stockist.
| Tube OD (in) | Thread Size (in) | Hex Flat (in) |
|---|---|---|
| 1/16 | 1/16 | 0.31 |
| 1/8 | 1/8 | 0.38 |
| 3/16 | 1/8 | 0.38 |
| 1/4 | 1/4 | 0.46 |
| 5/16 | 1/4 | 0.46 |
| 3/8 | 3/8 | 0.54 |
| 1/2 | 1/2 | 0.71 |
| 5/8 | 1/2 | 0.71 |
| 3/4 | 3/4 | 0.83 |
| 7/8 | 3/4 | 0.83 |
| 1 | 1 | 1.02 |
| Dash Size | Nominal Tube/Pipe Size | SAE100R2 | National Pipe Tapered Fuel (NPTF) | National Pipe Straight Mechanical (NPSM) | JIC 37° Flare Hydraulic SAE J514 | Flareless Compression SAE J514 | ||
| Male | Female | Female Swivel | Male | Female Swivel | ||||
| -02 | 1/8″ | 10000 | 5000 | 6000 | ||||
| -04 | 1/4″ | 5000 | 9500 | 4500 | 5000 | 8500 | 5500 | 6000 |
| -05 | 5/16″ | 4250 | 8500 | 5000 | ||||
| -06 | 3/8″ | 4000 | 8000 | 3500 | 4000 | 7000 | 4000 | 6000 |
| -08 | 1/2″ | 3500 | 6000 | 3500 | 3500 | 6000 | 4000 | 6000 |
| -10 | 5/8″ | 2750 | 5500 | 3000 | 5000 | |||
| -12 | 3/4″ | 2250 | 5000 | 3000 | 3500 | 4000 | 3000 | 4500 |
| -14 | 7/8″ | 2000 | 4000 | 3000 | ||||
| -16 | 1″ | 2000 | 4000 | 2500 | 3000 | 3500 | 2500 | 4000 |
| -20 | 1-1/4″ | 1625 | 3000 | 2000 | 2000 | 3500 | 2000 | |
| -24 | 1-1/2″ | 1250 | 2000 | 1500 | 1500 | 2000 | 1500 | |
| -32 | 2″ | 1125 | 2000 | 1400 | 1500 | 1250 | 1250 | |
Our SS 2205 high pressure compression fittings are designed to withstand the demands of both instrumentation and industrial environments.
Application of duplex steel instrumentation fittings
- Marine applications
- Aerospace industry
- Automotive manufacturing
- Brewing equipment
- Dairy equipment
Packaging of duplex compression fittings
- Plastic or Paper Sleeves
- Wooden Crates
- Cardboard Boxes
- Palletizing
- Strapping
Frequently asked questions
Are duplex compression fittings suitable for international export?
Yes, duplex compression fittings are commonly exported internationally due to their high demand and wide range of applications in various industries.
How are duplex steel instrumentation fittings typically packed for shipment?
duplex steel instrumentation fittings are usually packed in sturdy wooden cases or crates to ensure safe transportation and protection against damage during transit.
Do DSS high pressure compression fittings come with relevant quality certificates?
Yes, DSS high pressure compression fittings are often supplied with quality certificates such as Material Test Reports (MTRs) and Certificates of Conformance, ensuring compliance with industry standards and specifications.
Are there specific export regulations or documentation requirements for duplex 2205 tube fittings?
Export regulations and documentation requirements for duplex 2205 tube fittings may vary depending on the destination country and applicable trade agreements, and compliance with customs and trade regulations is essential.
Can duplex 2205 compression fittings be accompanied by third-party inspection certificates?
Yes, duplex 2205 compression fittings can be accompanied by third-party inspection certificates from reputable inspection agencies, providing additional assurance of product quality and compliance.
