Choose us as your Alloy C22 male elbow manufacturer in India
Reliable manufacturer of medium pressure ASTM B622 Alloy C22 pneumatic fittings up to 22,500 psi.
Table of content
- Hastelloy C22 tube fittings Specification
- Types of Hastelloy C22 compression fittings
- DIN 2.4602 instrumentation fittings chemical composition
- Alloy NW 6022 high pressure compression fittings mechanical composition
- Nickel Alloy C22 ferrule fittings equivalent grade
- Size chart of UNS N06022 male connector
- ASTM B366 UNS N06022 hydraulic fittings Pressure rating
| Types | Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories |
|---|---|
| Sizes | 1/8’’ to 2’’ and 3mm to 50mm |
| Ends | Threaded, Welding, JIC |
| Pressure Rating | 1000 Psi, 3000 Psi, 6000 Psi, 10000 Psi |
| Threads | NPT , BSPT, BSPP |
DIN 2.4602 instrumentation fittings
NW 6022 high pressure compression fittings
Nickel Alloy C22 ferrule fittings

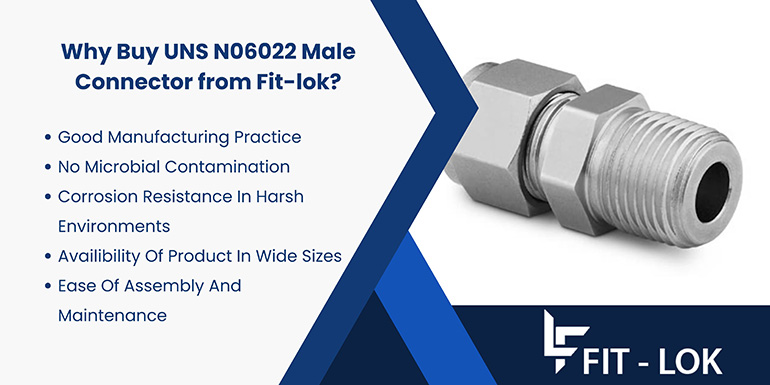

UNS N06022 male connector
ASTM B366 UNS N06022 hydraulic fittings
Alloy C22 Hastelloy bulkhead union
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
Our Nickel C22 bulkhead union offer superior performance and reliability for both instrumentation and industrial uses.
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
| C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 min* | 20.00 – 22.50 | 2.00 – 6.00 | 12.50 – 14.50 | 0.02 max |
| STANDARD | WERKSTOFF NR. | UNS | JIS | GOST | EN | OR |
| Hastelloy C22 | 2.4602 | N06022 | NW 6022 | – | NiCr21Mo14W | – |
Explore the tensile strength and electrical conductivity properties of our DIN 2.4602 compression tube fittings for efficient usage.
| Tube OD (in) | Thread Size (in) | Hex Flat (in) |
|---|---|---|
| 1/16 | 1/16 | 0.31 |
| 1/8 | 1/8 | 0.38 |
| 3/16 | 1/8 | 0.38 |
| 1/4 | 1/4 | 0.46 |
| 5/16 | 1/4 | 0.46 |
| 3/8 | 3/8 | 0.54 |
| 1/2 | 1/2 | 0.71 |
| 5/8 | 1/2 | 0.71 |
| 3/4 | 3/4 | 0.83 |
| 7/8 | 3/4 | 0.83 |
| 1 | 1 | 1.02 |
| Dash Size | Nominal Tube/Pipe Size | SAE100R2 | National Pipe Tapered Fuel (NPTF) | National Pipe Straight Mechanical (NPSM) | JIC 37° Flare Hydraulic SAE J514 | Flareless Compression SAE J514 | ||
| Male | Female | Female Swivel | Male | Female Swivel | ||||
| -02 | 1/8″ | 10000 | 5000 | 6000 | ||||
| -04 | 1/4″ | 5000 | 9500 | 4500 | 5000 | 8500 | 5500 | 6000 |
| -05 | 5/16″ | 4250 | 8500 | 5000 | ||||
| -06 | 3/8″ | 4000 | 8000 | 3500 | 4000 | 7000 | 4000 | 6000 |
| -08 | 1/2″ | 3500 | 6000 | 3500 | 3500 | 6000 | 4000 | 6000 |
| -10 | 5/8″ | 2750 | 5500 | 3000 | 5000 | |||
| -12 | 3/4″ | 2250 | 5000 | 3000 | 3500 | 4000 | 3000 | 4500 |
| -14 | 7/8″ | 2000 | 4000 | 3000 | ||||
| -16 | 1″ | 2000 | 4000 | 2500 | 3000 | 3500 | 2500 | 4000 |
| -20 | 1-1/4″ | 1625 | 3000 | 2000 | 2000 | 3500 | 2000 | |
| -24 | 1-1/2″ | 1250 | 2000 | 1500 | 1500 | 2000 | 1500 | |
| -32 | 2″ | 1125 | 2000 | 1400 | 1500 | 1250 | 1250 | |
Purchase C22 Hastelloy instrumentation tube fittings directly from the supplier at reasonable prices.
Application of DIN 2.4602 instrumentation fittings
- Brewing equipment
- Aerospace industry
- Automotive manufacturing
- Marine applications
- Dairy equipment
Packaging of Alloy C22 ferrule fittings
- Plastic or Paper Sleeves
- Wooden Crates
- Cardboard Boxes
- Palletizing
- Strapping
Frequently asked questions
What is the corrosion resistance of DIN 2.4602 instrumentation fittings?
DIN 2.4602 instrumentation fittings offer exceptional resistance to a wide range of corrosive environments, including acids, alkalis, and oxidizing media.
Can Alloy NW 6022 high pressure compression fittings be used in chlorine-containing environments?
Yes, Alloy NW 6022 high pressure compression fittings exhibit excellent resistance to chlorine and chlorine-containing solutions, making them suitable for applications in chemical processing and water treatment industries.
Are Nickel Alloy C22 ferrule fittings resistant to pitting and crevice corrosion?
Yes, Nickel Alloy C22 ferrule fittings demonstrate high resistance to pitting and crevice corrosion, making them ideal for use in aggressive environments.
What are the temperature limits for UNS N06022 male connector?
UNS N06022 male connector can operate in temperatures ranging from cryogenic (-325°F/-198°C) up to 1250°F (677°C), providing versatility for various temperature applications.
What are the available end connections for ASTM B366 UNS N06022 hydraulic fittings?
ASTM B366 UNS N06022 hydraulic fittings are available with various end connections, including compression fittings, NPT (National Pipe Thread) fittings, and butt weld fittings, offering flexibility for different installation requirements.
