One of the biggest Stainless steel hexagon bushing manufacturer in India
A hex bushing is a pipe fitting that is used to connect two pipes of different diameters. It has male threads on one end and female threads on the other, allowing it to screw into a larger female-threaded pipe or fitting while also providing a smaller male-threaded connection for the smaller pipe. The term “hex bushing” refers to the fitting’s hexagonal form, which provides a handy surface for tightening with a wrench.
The hex bushing permits the connecting of the smaller pipe to the bigger pipe or fitting by lowering the diameter of one end and giving male threads on the other. Male x female hex bushings have male threads on one end and female threads on the other, allowing for greater pipe connection versatility.
Forged steel hex bushings are available in various sizes
Their ability to form secure connections, combined with thread compatibility and durability, makes them essential components in a wide range of plumbing and industrial applications. By selecting the proper hex bushing and implementing it into the fluid system design, it is possible to accomplish efficient and dependable pipe size transitions, which contribute to overall system performance.
Table of content
| Types | NPT, ISO/BP, SAE/MS, AN, weld ends |
| Size | 1/16 to 2 in.; 2 to 50 mm, Medium-Pressure – 1/4, 3/8, 1/2, 9/16, 3/4, 1 in.; 6, 10, 12 mm, High-Pressure – 1/8 to 9/16 in. |
| Pressure Ratings | Up to 11 000 psig (760 bar), Medium-Pressure – Up to 20 000 psig (1378 bar), High-Pressure – Up to 60 000 psig (4134 bar). |
| Temperature Ratings | Up to 1000°F (537°C) |
| Thread | Thread BSPT, UNF, NPT, BSP, |
stainless steel hex bushings
hexagon bushing
hex bushing reducer
forged steel hex bushings
brass hex bushing
threaded hex bushing
| Stainless Steel | ASTM / ASME 201, 202, 301, 304, 304L, 310, 310S, 316L, 316TI, 317, 317L, 321, 347, 409, 409M, 409L, 410, 410S, 420, 430, 431, 441, 444, 446, 17.4PH, 904L |
| Super Duplex Steel | S32750 |
| Carbon Steel | ASTM / ASME A 335 GRP 1 , P 5 , P 9 , P 11 , P 12 , P 22 , P 23 , P 91 |
| Duplex Steel | ASTM / ASME SA 790 UNS NO S 31803 , S 32205 , S 32550 , S 32750 , S 32760. |
| Alloys Steel | ASTM / ASME A 691 GRP1 CR , 1 1/4 CR , 2 1/4 CR , 5 CR , 9CR , 91. |
| Titanium | Grade 1, Grade 4, Grade 5(Ti 6Al-4V), Grade 6(Ti 5Al-2.5Sn), Grade 7, Grade 11, Grade 12, 8Ai-1Mo-1V, Grade 9(3Al-2.5V), 6Al-6V-25n, 6Al-2Sn-4Zr-2Mo, 6Al-7Nb, Grade 23(Ti 6AL-4V ELI), Grade 5 ELI |
| Hastelloy | Hastelloy C-22, Hastelloy C-276, Hastelloy C-2000, Hastelloy C-4, Hastelloy X, Hastelloy B, Hastelloy N, Hastelloy G |
| Nickel Alloys | Nickel Alloys 200, Nickel Alloys 201 |
| Inconel | Inconel 600, Inconel 601, Inconel 625, Inconel 625LCF, Inconel 686, Inconel 718, Inconel 800, Inconel 825, Inconel X-750 , Inconel 690, Inconel 602, Inconel 617, Inconel 925, Inconel A-289, Inconel AL-6XN, AL-904L |
We are reliable threaded hex bushing suppliers who offer a wide range of options to meet your specific needs
- Industrial machinery
- Textile industry
- Brewing equipment
- Construction and architecture
- Power generation

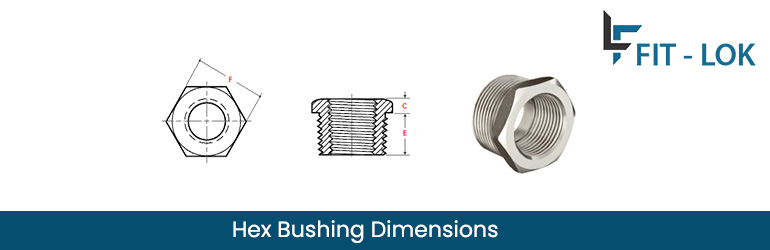

Dimensions of brass hex bushing are typically specified by the inner and outer pipe thread sizes they connect
- Pitting Resistance Test
- Micro and Macro Test
- Hardness Test
- Flaring Test
- IGC Test
- Flattening Test
- Chemical Analysis
Pressure rating is an important consideration when selecting threaded hex head bushing, ensuring they can handle the intended fluid or gas pressures
Packaging of Hex Bushing
- Plastic or Paper Sleeves
- Wooden Crates
- Cardboard Boxes
- Palletizing
- Strapping
Frequently asked questions
What is a Hex Bushing, and how is it used in pipe fittings to connect pipes or fittings with different thread sizes?
A Hex Bushing is a type of pipe fitting used to connect pipes or fittings with different thread sizes, with one end having a larger thread size and the other end having a smaller thread size.
What are the common materials and sizes available for Hex Bushings, and how do they ensure compatibility and reliable connections in various piping systems?
Hex Bushings are available in various materials, such as stainless steel, brass, or carbon steel, and come in common sizes to ensure compatibility and reliable connections in different piping systems.
What considerations should be taken into account when selecting a Hex Bushing
When selecting a Hex Bushing, it is important to consider the thread types of both ends, ensuring they match the existing pipe fittings, and also check the pressure ratings and material compatibility to ensure a proper and secure fitting connection.
