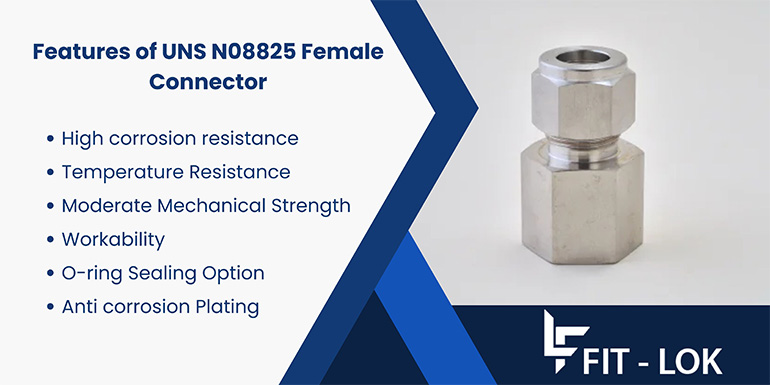

Choose us as your reliable UNS N08825 Female Connector manufacturer in India
Fit-lok is a leading manufacturer and supplier of high-quality Incoloy 825 Instrumentation Fittings. We provide a comprehensive assortment of Compression Tube Fittings with varying specifications to meet the needs of our customers. We take pleasure as a customer-focused producer in producing highly innovative Incoloy 825 Compression Tube Fittings that exceed client expectations. Our staff of skilled and devoted professionals gives exceptional guidance, guaranteeing that our respected clients receive perfect fittings.
Our passion for customer satisfaction pushes us to offer great products, and our selection of UNS N08825 Female Connector demonstrates our dedication to perfection. These fittings are engineered to work very well in harsh conditions. We understand the importance of Nickel Alloy 825 instrumentation fittings in guaranteeing leak-free connections and smooth performance in industrial applications at Fit-lok.

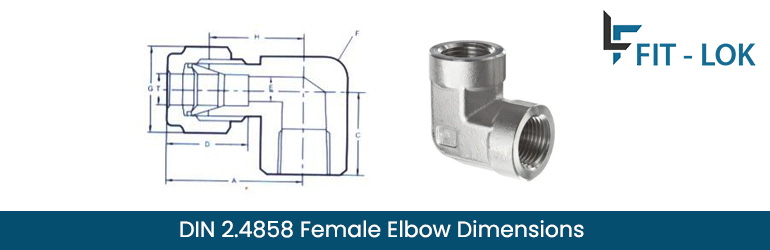

Choose the right Alloy 825 ferrule fittings and DIN 2.4858 high pressure compression fittings dimensions and sizes for your project
In reducing conditions containing phosphoric and sulfuric acids, UNS N08825 flare fittings provide high corrosion resistance. Our high-quality 825 Incoloy single ferrule fittings are extremely stable at high temperatures. They can be used in situations with temperatures ranging from 1600 degrees F to 2150 degrees F.
Inconel 825 double ferrule fittings mechanical qualities, such as high tensile strength and ductility, contribute to their capacity to tolerate high-pressure circumstances. These fittings provide dependable and leak-free connections, allowing industrial systems to run smoothly.
Fit-lok is proud to offer high-quality ASTM B564 UNS N08825 bulkhead union. Our dedication to exceeding customer expectations and delivering quality products distinguishes us as an industry leader.
Table of content
- Incoloy 825 tube fittings Specification
- Types of Incoloy 825 compression fittings
- Alloy 825 ferrule fittings chemical composition
- DIN 2.4858 high pressure compression fittings mechanical composition
- Nickel Alloy 825 instrumentation fittings equivalent grade
- Size chart of ASTM B446 UNS N08825 male connector
- Alloy 825 compression tube fittings Pressure rating
| Types | Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories |
|---|---|
| Sizes | 1/8’’ to 2’’ and 3mm to 50mm |
| Ends | Threaded, Welding, JIC |
| Pressure Rating | 1000 Psi, 3000 Psi, 6000 Psi, 10000 Psi |
| Threads | NPT , BSPT, BSPP |
Nickel Alloy 825 instrumentation fittings
ASTM B446 UNS N08825 male connector
Incoloy Alloy 825 hydraulic fittings
UNS N08825 flare fittings
825 Incoloy single ferrule fittings
Inconel 825 double ferrule fittings
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| 825 | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 19.50 – 23.50 | 0.02 max | 0.06 – 1.20 |
From instrumentation to industrial applications, our Nickel Alloy 825 instrumentation fittings and ASTM B446 UNS N08825 male connector are engineered to deliver exceptional performance.
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 825 | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
| Incoloy 825 | 2.4858 | N08825 | NCF 825 | NA 16 | ЭП703 | NFE30C20DUM | NiCr21Mo | XH38BT |
Obtain Incoloy Alloy 825 double ferrule fittings and UNS N08825 flare fittings at reasonable prices from the stockholder.
| Tube OD (in) | Thread Size (in) | Hex Flat (in) |
|---|---|---|
| 1/16 | 1/16 | 0.31 |
| 1/8 | 1/8 | 0.38 |
| 3/16 | 1/8 | 0.38 |
| 1/4 | 1/4 | 0.46 |
| 5/16 | 1/4 | 0.46 |
| 3/8 | 3/8 | 0.54 |
| 1/2 | 1/2 | 0.71 |
| 5/8 | 1/2 | 0.71 |
| 3/4 | 3/4 | 0.83 |
| 7/8 | 3/4 | 0.83 |
| 1 | 1 | 1.02 |
| Dash Size | Nominal Tube/Pipe Size | SAE100R2 | National Pipe Tapered Fuel (NPTF) | National Pipe Straight Mechanical (NPSM) | JIC 37° Flare Hydraulic SAE J514 | Flareless Compression SAE J514 | ||
| Male | Female | Female Swivel | Male | Female Swivel | ||||
| -02 | 1/8″ | 10000 | 5000 | 6000 | ||||
| -04 | 1/4″ | 5000 | 9500 | 4500 | 5000 | 8500 | 5500 | 6000 |
| -05 | 5/16″ | 4250 | 8500 | 5000 | ||||
| -06 | 3/8″ | 4000 | 8000 | 3500 | 4000 | 7000 | 4000 | 6000 |
| -08 | 1/2″ | 3500 | 6000 | 3500 | 3500 | 6000 | 4000 | 6000 |
| -10 | 5/8″ | 2750 | 5500 | 3000 | 5000 | |||
| -12 | 3/4″ | 2250 | 5000 | 3000 | 3500 | 4000 | 3000 | 4500 |
| -14 | 7/8″ | 2000 | 4000 | 3000 | ||||
| -16 | 1″ | 2000 | 4000 | 2500 | 3000 | 3500 | 2500 | 4000 |
| -20 | 1-1/4″ | 1625 | 3000 | 2000 | 2000 | 3500 | 2000 | |
| -24 | 1-1/2″ | 1250 | 2000 | 1500 | 1500 | 2000 | 1500 | |
| -32 | 2″ | 1125 | 2000 | 1400 | 1500 | 1250 | 1250 | |
Gain insights into the elastic modulus and chemical stability properties of our 825 Incoloy single ferrule fittings and Ni 825 hydraulic fittings for reliable usage.
Application of Incoloy 825 instrumentation fittings
- Aerospace industry
- Marine applications
- Water treatment
- HVAC systems
- Automotive applications
Packaging of Alloy 825 ferrule fittings
- Plastic or Paper Sleeves
- Wooden Crates
- Cardboard Boxes
- Palletizing
- Strapping
Frequently asked questions
What is the temperature range for Incoloy 825 instrumentation fittings?
Incoloy 825 instrumentation fittings can typically operate in temperatures ranging from cryogenic (-423°F/-253°C) up to 1000°F (538°C), providing excellent high-temperature strength and corrosion resistance.
Are Incoloy 825 compression fittings resistant to sulfuric acid?
Yes, Incoloy 825 compression fittings exhibit excellent resistance to sulfuric acid, including both concentrated and dilute solutions.
Can Alloy 825 ferrule fittings be used in hydrogen environments?
Yes, Alloy 825 ferrule fittings have good resistance to hydrogen embrittlement, making them suitable for hydrogen-related applications.
What are the available end connections for UNS N08825 flare fittings?
UNS N08825 flare fittings are available with various end connections, including compression, NPT (National Pipe Thread), and socket weld, providing flexibility for different installation requirements.
Are Alloy 825 compression tube fittings suitable for high-pressure gas applications?
Yes, Alloy 825 compression tube fittings are designed to withstand high-pressure gas applications, making them suitable for industries such as petrochemical and gas processing.
