ISO 7241-A Male Couplings Manufacturer in India

ISO 7241 A Quick Couplings

ISO 7241 Quick couplings are a form of hydraulic coupling that is commonly utilized in high-pressure applications. Iso 7241 A Quick Couplings are intended to provide a quick and simple method of connecting and disconnecting hydraulic hoses without the use of tools or specialist equipment.

ISO 7241 A series couplings are available in stainless steel, nickel alloys, brass, and carbon steel etc. They are designed to meet or exceed the criteria of the ISO 7241 A standard, ensuring compatibility with other ISO 7241 A couplings from any manufacturer.

Hydraulic ISO 7241-A quick couplers are widely utilized in industries such as agriculture, construction, mining, and transportation. They’re suitable for applications that demand frequent connections and disconnections, such as hydraulic systems for machinery and equipment.

Refer dimensions of Hydraulic ISO 7241-A Quick Couplers

The ISO 7241 series Interchange steel fast couplings provide a high flow capacity and a minimal pressure drop. They are intended to limit fluid loss while providing dependable and efficient performance in severe situations.

The ISO-7241-A series release hydraulic couplings have a self-locking mechanism that ensures a solid connection between the coupler and the nipple. They are intended to prevent inadvertent disconnection and to assure operational safety.

On the end of the hydraulic hose typically ISO 7241 A male couplings are used, although ISO 7241-1 series A female couplers are employed to connect to the male couplings. They are intended to offer a leak-free connection while also ensuring efficient hydraulic fluid transfer.

ISO 7241 A Quick Couplings Specification

Type ISO 7241 A Quick Couplings
SIZE 1/8″ TO 4″
THREAD NPT, BSPP, BSPT, JIC, METRIC, UNF
CONNECTION FEMALE TO FEMALE, FEMALE TO MALE, MALE TO MALE, MALE TO HOSE BARBED
PRESSURE RATING UPTO 6000 PSI
A QUICK Couplings MEDIA HYDRAULIC OIL, AIR, WATER, GAS, STEAM, HOT WATER , COLD WATER , SEA WATER , CHEMICAL, FUEL, VACUUMS
MEDIA TEMPERATURE (-40* C TO 300*C ) RANGE AS PER PRESSURE
SEAL NITRILE, VITON, EPDM

Different types of ISO 7241-A Male Couplings

ISO 7241 A Quick Couplings

ISO 7241 A Quick Couplings

ISO 7241-A Male Couplings

ISO 7241-A Male Couplings

Hydraulic ISO 7241-A Quick Couplers

Hydraulic ISO 7241-A Quick Couplers

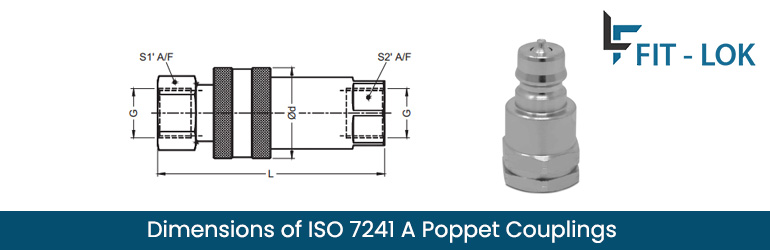

Dimensions of Hydraulic ISO 7241-A Quick Couplers

Body Size Connection Thread Size (inch)
3/8″ 3/8-19
1/2″ 3/4 – 14
3/4″ 3/4 – 14
1″ 1 – 11 1/2
1/4″ 1/8 – 27
1/4″ 1/4 – 18
3/8″ 3/8 – 18
1/2″ 1/2 – 14
1/2″ 7/8 – 14
1/2″ 1 1/16 – 12
3/4″ 1 1/16 – 12
1″ 1 5/16 – 12
3/8″ 9/16 – 18
1/2″ 3/4 – 16

Operating Temperature of ISO 7241 A Quick Couplings

Operating Temperature 250 °F / 121 °C

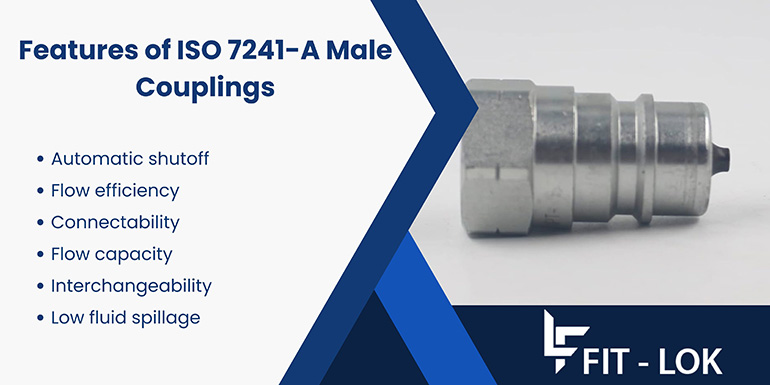

Features of ISO 7241-A Male Couplings

  • Globally interchangeable with other manufacturer’s
  • Optional sleeve lock helps to prevent accidental disconnection
  • Steel coupler sleeve is hardened for durability

Hydraulic ISO 7241-A Quick Couplers Application

  • Hydraulic fluid transfer
  • Truck trailer connections
  • Mobile applications
  • Attachments
