Select us as your go-to ASTM B160 UNS N02201 bulkhead union manufacturer in India
Fit-lok is a high-quality manufacturer and supplier of Nickel 201 tube fittings. We have established ourselves as a reliable source in the business due to our commitment to excellence and customer satisfaction. Our ASTM B160 UNS N02201 bulkhead union demonstrates our dedication to producing exceptional solutions to fulfill the changing needs of various industries.
Ni 201 flare fittings have good corrosion resistance and can be used in a variety of industrial applications. They are more resistant to both acidic and alkaline environments, ensuring consistent performance even in extreme situations.
ASTM B160 UNS N02201 single ferrule fittings are versatile and find use in a variety of industries. Because of their compatibility with various fluids and gases, they are useful for a wide range of industrial processes.
Affordable rates for top-quality DIN 2.4068 hydraulic fittings in India
UNS N02201 double ferrule fittings are known for their outstanding corrosion resistance, making them appropriate for usage in a wide range of industrial settings. These fittings are more resistant to acidic and alkaline environments, ensuring consistent performance in corrosive settings.
Pure nickel 201 bulkhead unions are used in a variety of industries, including chemical processing, petrochemical, oil and gas, and power production. Because of their corrosion resistance, great mechanical strength, and thermal stability, they are critical components in a variety of industrial operations. ASTM B160 N02201 adapter fittings are useful in a variety of industries, including chemical processing, petrochemical, oil and gas, and power production. They are often utilized in applications requiring corrosion resistance and great mechanical strength.
Table of content
- Nickel 201 tube fittings Specification
- Types of Nickel alloy 201 compression fittings
- Alloy 201 male connector chemical composition
- ASTM B160 N02201 instrumentation fittings mechanical composition
- Nickel 201 ferrule fittings equivalent grade
- Size chart of DIN 2.4068 hydraulic fittings
- Ni 201 flare fittings Pressure rating
| Types | Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories |
|---|---|
| Sizes | 1/8’’ to 2’’ and 3mm to 50mm |
| Ends | Threaded, Welding, JIC |
| Pressure Rating | 1000 Psi, 3000 Psi, 6000 Psi, 10000 Psi |
| Threads | NPT , BSPT, BSPP |

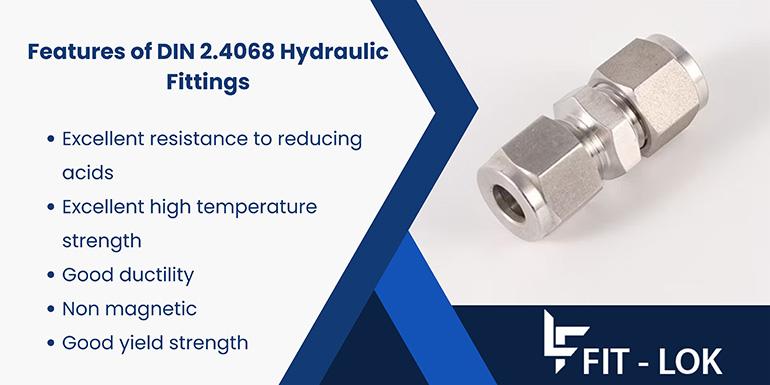

DIN 2.4068 hydraulic fittings
Ni 201 flare fittings
ASTM B160 UNS N02201 single ferrule fittings
Nickel UNS N02201 double ferrule fittings
alloy 201 nickel pneumatic fittings
pure nickel 201 bulkhead union
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Nickel 201 | 0.02 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
Our Ni 201 flare fittings are versatile, making them ideal for various applications in both instrumentation and industrial fields.
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Nickel 200 / 201 | 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 67000 , MPa – 462 | Psi – 21500 , MPa – 148 | 45 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Nickel 201 | 2.4068 | N02201 | NW 2201 | NA 12 | НП-2 | – | LC-Ni 99 |
Source ASTM B160 UNS N02201 single ferrule fittings at competitive prices from the exporter.

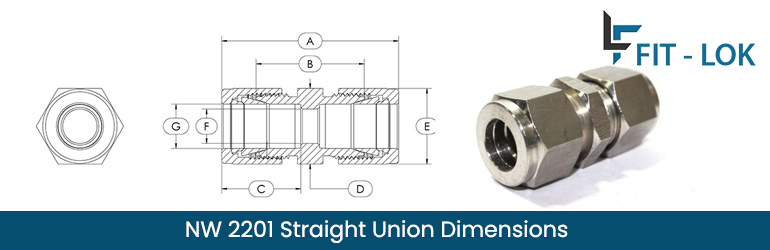

| Tube OD (in) | Thread Size (in) | Hex Flat (in) |
|---|---|---|
| 1/16 | 1/16 | 0.31 |
| 1/8 | 1/8 | 0.38 |
| 3/16 | 1/8 | 0.38 |
| 1/4 | 1/4 | 0.46 |
| 5/16 | 1/4 | 0.46 |
| 3/8 | 3/8 | 0.54 |
| 1/2 | 1/2 | 0.71 |
| 5/8 | 1/2 | 0.71 |
| 3/4 | 3/4 | 0.83 |
| 7/8 | 3/4 | 0.83 |
| 1 | 1 | 1.02 |
| Dash Size | Nominal Tube/Pipe Size | SAE100R2 | National Pipe Tapered Fuel (NPTF) | National Pipe Straight Mechanical (NPSM) | JIC 37° Flare Hydraulic SAE J514 | Flareless Compression SAE J514 | ||
| Male | Female | Female Swivel | Male | Female Swivel | ||||
| -02 | 1/8″ | 10000 | 5000 | 6000 | ||||
| -04 | 1/4″ | 5000 | 9500 | 4500 | 5000 | 8500 | 5500 | 6000 |
| -05 | 5/16″ | 4250 | 8500 | 5000 | ||||
| -06 | 3/8″ | 4000 | 8000 | 3500 | 4000 | 7000 | 4000 | 6000 |
| -08 | 1/2″ | 3500 | 6000 | 3500 | 3500 | 6000 | 4000 | 6000 |
| -10 | 5/8″ | 2750 | 5500 | 3000 | 5000 | |||
| -12 | 3/4″ | 2250 | 5000 | 3000 | 3500 | 4000 | 3000 | 4500 |
| -14 | 7/8″ | 2000 | 4000 | 3000 | ||||
| -16 | 1″ | 2000 | 4000 | 2500 | 3000 | 3500 | 2500 | 4000 |
| -20 | 1-1/4″ | 1625 | 3000 | 2000 | 2000 | 3500 | 2000 | |
| -24 | 1-1/2″ | 1250 | 2000 | 1500 | 1500 | 2000 | 1500 | |
| -32 | 2″ | 1125 | 2000 | 1400 | 1500 | 1250 | 1250 | |
Discover the electrical resistivity and hardness properties of our UNS N02201 compression tube fittings for precise applications.
Application of nickel 201 ferrule fittings
- Marine applications
- Aerospace industry
- Water treatment
- Automotive applications
- HVAC systems
Packaging of ASTM B160 N02201 instrumentation fittings
- Plastic or Paper Sleeves
- Wooden Crates
- Cardboard Boxes
- Palletizing
- Strapping
Frequently asked questions
What is the difference between Nickel 200 and Nickel alloy 201 compression fittings?
Nickel alloy 201 compression fittings have lower carbon content compared to Nickel 200, providing improved resistance to graphitization and better corrosion resistance in certain environments.
Are Alloy 201 male connector suitable for high-purity applications?
Yes, Alloy 201 male connector are commonly used in high-purity applications such as electronics and chemical processing industries due to their low levels of impurities and excellent resistance to corrosion.
Can ASTM B160 N02201 instrumentation fittings be used in reducing acid environments?
Yes, ASTM B160 N02201 instrumentation fittings exhibit good resistance to reducing acids, making them suitable for applications involving sulfuric acid and hydrochloric acid at moderate concentrations.
What are the available end connections for nickel 201 ferrule fittings?
nickel 201 ferrule fittings are available with various end connections, including compression fittings, NPT (National Pipe Thread) fittings, and socket weld fittings, offering flexibility for different installation requirements.
What industries commonly utilize Ni 201 flare fittings?
Ni 201 flare fittings find applications in industries such as chemical processing, electronics, and pharmaceuticals, where corrosion resistance, high-purity requirements, and resistance to reducing acids are essential.
