We are top notch Sae socket weld adapter manufacturer in India
SAE Butt Weld Adapter design prioritizes strength, reliability, and ease of installation, making them a preferred choice for high-pressure applications. SAE Butt Weld Adapters are available in size range from 1/4 inch (DN6) to 2 inches (DN50). The weld ends are machined to precise dimensions, ensuring a strong and secure weld joint with minimal chances of failure under pressure.
Leading supplier of Sae butt weld adapter with o-ring in Mumbai
Fitlok ensures that all Sae butt weld adapter with o-ring are manufactured using high-grade materials such as carbon steel, stainless steel, and alloy steel, providing excellent durability and performance across diverse applications. We offers custom manufacturing options, catering to unique buyer requirements. Whether you need non-standard sizes or specific pressure ratings, Fitlok delivers tailored solutions.

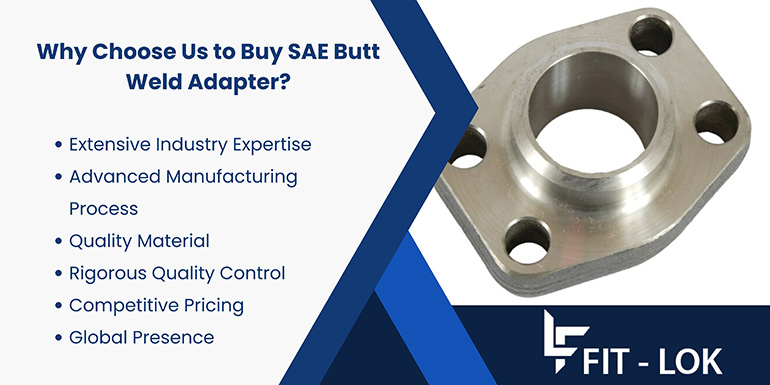

Every SAE Butt Weld Adapter from Fitlok undergoes stringent quality checks to ensure they meet industry standards for pressure, durability, and performance. Our team of experts assists buyers in selecting the right Sae socket weld adapter based on system requirements. They provide detailed product specifications and customization options, ensuring a smooth purchasing experience.
Table of content
| Type | Sae butt weld adapter |
| DESIGN | SAE J518 C / ISO 6162 / ISO 6164 / JIS B2291 |
| MATERIAL | CS, SS 304, SS 316, SS 316 TI, ALLOY STEEL, DUPLEX, SUPER DUPLEX, INCONEL, MONEL, HASTELLOY, SMO 254, 904 L, TITANIUM |
| WORKING PRESSURE | UPTO 210 BAR (3000 PSI) & 420 BAR (6000 PSI) & 700 BAR (10,000 PSI) CUSTOMISED |
| CODE | CODE 61 FLANGE (3000 PSI) & CODE 62 FLANGE (6000 PSI) |
| SIZE RANGE | 3/8″ (DN 10) TO 5″ (DN 125) |
| CONNECTIONS | BUTT WELD, SOCKET WELD, THREADED (BSPP, NPT, METRIC, JIC) |
| BODY TYPE | FORGED, BAR STOCK |
| FLANGE ACCESSORIES | O-RING, BOLT, NUT, WASHER |
| O-RING MATERAL | NITRILE, BUNA 90 SHORE, VITON 85-90 SHORE |
| BOLTS MATERIAL | HIGH TENSILE 8.8 GR, 10.9 GR, 12.9 GR, SS 304, SS316 |
| SURFACE | CARBON STEEL – BLACK PHOSPHATED, TRIVALENT ZINC PLATED, |
| STAINLESS STEEL – ELECTROPLATING, NATURAL FINISH |
SAE butt weld adapter
SAE socket weld adapter
SAE butt weld adapter with o-ring
| Working Pressure Kg/cm2 | Size | A | B | C | D | E | F | G | H | L | Screws (Metric) | Screws (UNC) | Or Type | Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 414 | 1/2″ | 21,5 | 15.8 | 40,49 | 57 | 18,24 | 46 | 36 | 16 | 9 | M8x30 | 5/16×1″1/4 | 4075 | 0,24 |
| 414 | 1/2″ (3/8″) | 17,5 | 15.8 | 40,49 | 57 | 18,24 | 46 | 36 | 16 | 9 | M8x30 | 5/16×1″1/4 | 4075 | 0,22 |
| 414 | 3/4″ | 28,0 | 20.9 | 50,80 | 71 | 23,80 | 55 | 35 | 21 | 11 | M10x40 | 3/8×1″1/2 | 4100 | 0,48 |
| 414 | 1″ | 34,0 | 26.6 | 57,15 | 79 | 27,76 | 68 | 41 | 21 | 13 | M12x45 | 7/16×1″3/4 | 4131 | 0,64 |
| 378 | 1″1/4 | 42,8 | 35.1 | 66,68 | 93 | 31,75 | 78 | 44 | 25 | 15 * | M14x45 | 1/2×1″3/4 | 4150 | 1,00 |
| 320 | 1″1/2 | 48,6 | 40.9 | 79,38 | 112 | 36,50 | 94 | 55 | 30 | 17 | M16x50 | 5/8×2″ | 4187 | 1,68 |
| 250 | 2″ | 61,0 | 52.5 | 96,82 | 134 | 44,45 | 114 | 65 | 37 | 21 | M20x70 | 3/4×2″1/2 | 4225 | 2,86 |
| 230 | 2″1/2 | 76,6 | 62 | 123,80 | 180 | 58,70 | 152 | 80 | 45 | 26 | M24x80 | – | 4275 | 6,40 |
| 200 | 3″ | 90,0 | 77.9 | 152,40 | 208 | 71,40 | 178 | 90 | 55 | 33 | M30x100 | – | 4337 | – |
| Metric Size | Flange Size | Screw Thread | Screw Torque (NM) |
| 13 | 1/2″ | M8 | 32 |
| 19 | 3/4″ | M10 | 60 |
| 25 | 1″ | M12 | 60 |
| 32 | 1 1/4″ | M12 | 92 |
| 38 | 1 1/2″ | M16 | 150 |
| 51 | 2″ | M20 | 150 |
| 64 | 2 1/2″ | M24 | 150 |
| 75 | 3″ | M30 | 295 |
- Easy Installation
- Temperature Resistance
- Corrosion Resistance
- Interchangeability
- Sealing Options
- Building Machinery
- Agricultural Machinery
- Paper Processing
- Mobile Hydraulics
- Forestry Machinery
- Lifting and Material Handling Equipment
