SMO 254 needle valve specification

sizes 1/4″ to 1″ (Female / Female BSP and BSPT), 3/8″ to 1″ (Female / Female NPT) and 1/4″ to 1/2″ (Male / Female BSPP).
Temperature range: -20°C to 230°C.
Operator Bar, hand operated.
Pressure rating: 6000 PSI.
Flow Rate .93, 2.34, 6.42, .70, 1.04, 3.62,.87 Cv
Applicable Standard
  • Design & Manufacture : BS 1868
  • Face to Face according to : ASME B16.10
  • Flange Dimensions as per: ASME B16.5
  • Pressure & Temperature : ASME B16.34
  • Test & Inspection accordance to : API 6D / API 598
  • Visual Inspection accordance to : MSS SP-55
  • Marking accordance to : MSS SP-25
Approvals
  • MSS SP-110
  • API-598
  • ANSI B1.20.1
  • ANSI B16.11
  • NACE Certified
  • ANSI B16.34
  • API 607 Fire Safe
Connection
  • Single Ferrule
  • Two Ferrule (Double Ferrule)
  • Twin Ferrule
  • Thread

Alloy 254 angle needle valve chemical composition

SMO 254 C Ni Cr Mn Mo Fe Si S Cu P
0.002 maximum 17.05  to  18.05 19.05  to  20.05 1 maximum 6  to  6.05 to 0.08 maximum 0.001 maximum 0.05  to 1 0.003 maximum

SMO 254 socket weld needle valve Mechanical properties

Melting Point Density Tensile Strength Yield Strength (0.2%Offset) Elongation
1320 to 1390 ℃ 8.0 g/cm3 650 300 35 %

Equivalent grade of SMO 254 needle valves

STANDARD GOST WERKSTOFF NR. UNS JIS EN AFNOR SIS
SMO 254 – 1.4547 S31254 – X1CrNiMoCuN20-18-7 Z1 CNDU 20.18.06Az 2378

Pressure Rating Of DIN 1.4547 needle valve

Port Size (BSP) Nominal Bore (Ømm) Media Pressure Media Temperature CV
1/8″ 5 0 to 408 Bar -20°C to 230°C
¼” 5 0 to 408 Bar -20°C to 230°C 0.4
3/8″ 5 0 to 408 Bar -20°C to 230°C 0.4
½” 5 0 to 408 Bar -20°C to 230°C 0.6
¾” 6 0 to 408 Bar -20°C to 230°C 1.6
1″ 8 0 to 408 Bar -20°C to 230°C 2.5

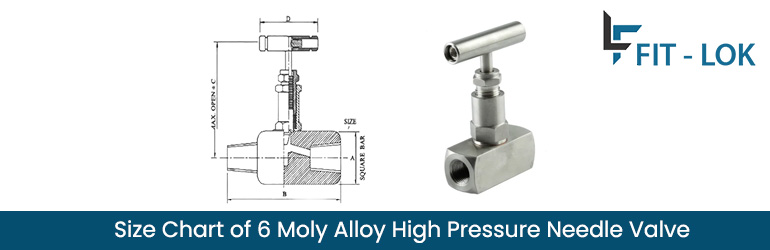

Size Chart of 6 Moly Alloy needle valve high pressure needle valve

Needle Valve size chart

Size L a b W H
1/8″ 56 28 28 60 80
¼” 56 28 28 60 80
3/8” 56 28 28 60 80
½” 58 28 28 60 81
¾” 62 35 35 60 85
1” 70 45 45 70 100
