SS 304 Compression Tube Fittings manufacturer in India
Fit-Lok manufactures Stainless Steel 304 Instrumentation Fittings for a wide range of industries worldwide. We have a fully-equipped inventory from which we develop and provide a wide range of unique products. Our UNS S30400 Double Ferrule Fittings are austenitic stainless steel with chromium and nickel. Superior corrosion resistance is provided by 304 stainless steel. 304 Grade is commonly used because of its qualities such as weldability and formability. These SS 304 Bulk Head Male Connectors are resistant to various climatic conditions and corrosive agents.
We design our products to work well in any environment. We conduct different tests to ensure the quality of raw materials and finished products. We use worldwide product standards to determine all of the properties and attributes of raw materials. We are also interested in customizing it. As a result, we pass our goods through numerous processes.
Get the best deals on top-quality SS 304 Compression Tube Fittings and DIN 1.4301 Instrumentation Tube Fittings from trusted suppliers offering competitive rates in India
Fit-Lok has a big analytical unit that includes a variety of specialized testing machines and tools. Our quality staff thoroughly inspects the merchandise. Such an important and professionally crafted product is available to our clients at a reasonable price. Along with the product, we provide all necessary documentation, such as the third-party laboratory test report, raw material analysis, mechanical and chemical analysis.
304 SS tube elbow are made with outstanding tensile qualities, physical properties, and mechanical properties for better fitting construction. These fittings have excellent characteristics such as formability, durability, ductility, and workability. Because of their corrosive nature, these fittings are best suited for usage in industries. SS 304 Compression Tube Fittings are used in a variety of applications, including chemical equipment, heat exchangers, condensers, seawater equipment, pharmaceutical equipment, military applications, infrastructure construction, oil and gas transportation, and pipe shafts.
Table of content
- Stainless Steel 304 instrumentation fittings Specification
- Types of 304 SS tube elbow
- SS 304 Compression Tube Fittings chemical composition
- DIN 1.4301 Instrumentation Tube Fittings mechanical composition
- UNS S30400 Double Ferrule Fittings equivalent grade
- Size chart of SS 304 Bulk Head Male Connector
- SS 304 Male Branch Tee Pressure rating
| Types | Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories |
|---|---|
| Sizes | 1/8’’ to 2’’ and 3mm to 50mm |
| Ends | Threaded, Welding, JIC |
| Pressure Rating | 1000 Psi, 3000 Psi, 6000 Psi, 10000 Psi |
| Threads | NPT , BSPT, BSPP |
SS 304 Compression Tube Fittings
DIN 1.4301 Instrumentation Tube Fittings
UNS S30400 Double Ferrule Fittings
SS 304 Bulk Head Male Connector
SS 304 Male Branch Tee
Stainless Steel 304 BSPT Couplings
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 304 | min. | – | – | – | – | – | 18.0 | – | 8.0 | – |
| max. | 0.08 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 10.5 | 0.10 | ||
Specialized manufacturer of medium-pressure UNS S30400 Double Ferrule Fittings and SS 304 Bulk Head Male Connector, tailored to meet demanding industry standards
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304 | 515 | 205 | 40 | 92 | 201 |
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 304 | S30400 | 304S31 | 58E | 1.4301 | X5CrNi18-10 | 2332 | SUS 304 |
Exporter of SS 304 Male Branch Tee and Alloy 304 BSPT Couplings, providing seamless installation and substantial savings on labor costs
| Tube OD (in) | Thread Size (in) | Hex Flat (in) |
|---|---|---|
| 1/16 | 1/16 | 0.31 |
| 1/8 | 1/8 | 0.38 |
| 3/16 | 1/8 | 0.38 |
| 1/4 | 1/4 | 0.46 |
| 5/16 | 1/4 | 0.46 |
| 3/8 | 3/8 | 0.54 |
| 1/2 | 1/2 | 0.71 |
| 5/8 | 1/2 | 0.71 |
| 3/4 | 3/4 | 0.83 |
| 7/8 | 3/4 | 0.83 |
| 1 | 1 | 1.02 |
| Dash Size | Nominal Tube/Pipe Size | SAE100R2 | National Pipe Tapered Fuel (NPTF) | National Pipe Straight Mechanical (NPSM) | JIC 37° Flare Hydraulic SAE J514 | Flareless Compression SAE J514 | ||
| Male | Female | Female Swivel | Male | Female Swivel | ||||
| -02 | 1/8″ | 10000 | 5000 | 6000 | ||||
| -04 | 1/4″ | 5000 | 9500 | 4500 | 5000 | 8500 | 5500 | 6000 |
| -05 | 5/16″ | 4250 | 8500 | 5000 | ||||
| -06 | 3/8″ | 4000 | 8000 | 3500 | 4000 | 7000 | 4000 | 6000 |
| -08 | 1/2″ | 3500 | 6000 | 3500 | 3500 | 6000 | 4000 | 6000 |
| -10 | 5/8″ | 2750 | 5500 | 3000 | 5000 | |||
| -12 | 3/4″ | 2250 | 5000 | 3000 | 3500 | 4000 | 3000 | 4500 |
| -14 | 7/8″ | 2000 | 4000 | 3000 | ||||
| -16 | 1″ | 2000 | 4000 | 2500 | 3000 | 3500 | 2500 | 4000 |
| -20 | 1-1/4″ | 1625 | 3000 | 2000 | 2000 | 3500 | 2000 | |
| -24 | 1-1/2″ | 1250 | 2000 | 1500 | 1500 | 2000 | 1500 | |
| -32 | 2″ | 1125 | 2000 | 1400 | 1500 | 1250 | 1250 | |

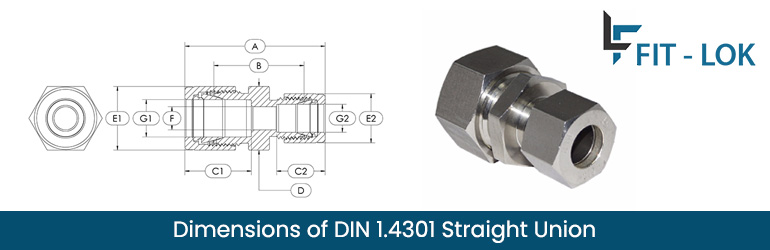

Find precise AISI 304 twin ferrule fittings and 304 SS tube elbow dimensions and sizes to ensure optimal performance and efficiency in your applications
Application of 304 SS tube elbow
- Power generation
- Textile industry
- Brewing equipment
- Industrial machinery
- Construction and architecture
Packaging of UNS S30400 Double Ferrule Fittings
- Plastic or Paper Sleeves
- Wooden Crates
- Cardboard Boxes
- Palletizing
- Strapping
Frequently asked questions
What is the working temperature range of stainless steel 304 compression fittings?
Stainless steel 304 compression fittings can typically withstand temperatures ranging from -20°C to 300°C.
Are Stainless Steel 304 instrumentation fittings resistant to corrosion?
Yes, Stainless Steel 304 instrumentation fittings exhibit excellent corrosion resistance.
What is the maximum pressure rating for 304 SS tube elbow?
The maximum pressure rating for 304 SS tube elbow is typically around 6000 psi.
Can UNS S30400 Double Ferrule Fittings be used with various types of tubing?
Yes, UNS S30400 Double Ferrule Fittings are compatible with a wide range of tubing materials, including stainless steel, copper, and plastic.
Are SS 304 Male Branch Tee reusable?
Yes, SS 304 Male Branch Tee are designed to be reusable and can be disassembled and reassembled multiple times without compromising their integrity.
