Are you looking for 304l Stainless steel tube elbow manufacturer in India
FIt-lok has established itself as a reliable supplier of stainless steel 304l tube fittings, providing a comprehensive range of solutions customised to our customers’ different needs. We have a good reputation in the market for delivering high-quality 304l Stainless steel tube elbow that exceed expectations, thanks to our years of experience and competence.
ASTM A276 SS 304l Male Branch Tee are critical components in many industrial applications, particularly in the oil & gas, chemical, petrochemical, and power generation industries. These precision-engineered fittings are noted for their remarkable strength, longevity, and corrosion resistance.
304l SS Bulkhead Reducer are available in a variety of specifications to guarantee that they fulfil the unique requirements of various applications. Dimensions, thickness, shape, size, condition, tolerance, grade, standard, forms, types, finishing, surface, and application of the fittings are all specified. To ensure optimal performance and compatibility, each standard is carefully considered during the manufacturing process.
We are trusted SS 304L Compression fitting manufacturer in India
DIN 1.4307 ferrule fittings have exceptional mechanical and physical qualities in addition to the standards. Tensile strength, yield strength, ultimate tensile strength, melting point, density, elongation, thermal conductivity, electrical conductivity, modulus of expansion, and Brinell hardness are among these qualities. These characteristics make 304L SS Push Fit Fittings appropriate for a wide range of demanding settings.
Fit-lok recognises the significance of supplying goods that satisfy the highest quality standards. To achieve the highest quality of our SS 304L Push-To-Connect Fittings, we employ extensive quality control techniques throughout the manufacturing process. Our goods are rigorously tested to ensure their performance, durability, and compliance with standards. This dedication to quality has earned us the trust of our customers.
SS 304L Pneumatic Fittings are well-known for their long service life and low maintenance requirements. Routine examination, however, is recommended for maximum functioning.
Table of content
- Stainless steel 304l tube fittings Specification
- Types of 304l Stainless steel tube elbow
- ASTM A276 SS 304l Male Branch Tee chemical composition
- 304l SS Bulkhead Reducer mechanical composition
- UNS S30403 Reducer Union equivalent grade
- Size chart of DIN 1.4307 ferrule fittings
- 304L SS Push Fit Fittings Pressure rating
| Types | Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories |
|---|---|
| Sizes | 1/8’’ to 2’’ and 3mm to 50mm |
| Ends | Threaded, Welding, JIC |
| Pressure Rating | 1000 Psi, 3000 Psi, 6000 Psi, 10000 Psi |
| Threads | NPT , BSPT, BSPP |
304l Stainless steel tube elbow
ASTM A276 SS 304l Male Branch Tee
304l SS Bulkhead Reducer
UNS S30403 Reducer Union
DIN 1.4307 ferrule fittings

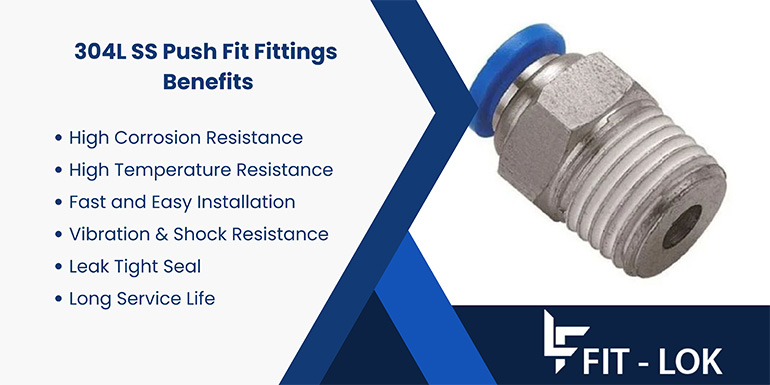

304L SS Push Fit Fittings
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
|---|---|---|---|---|---|---|---|---|---|---|
| 304l | min. | – | – | – | – | – | 18.0 | – | 8.00 | – |
| max. | 0.030 | 2.0 | 0.75 | 0.045 | 0.030 | 20.0 | 12.00 | 0.10 | ||
Exporter of 304l SS Bulkhead Reducer and UNS S30403 Reducer Union, offering streamlined installation processes and remarkable labor cost savings
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
|---|---|---|---|---|---|
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 304l | 485 | 170 | 40 | 92 | 201 |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
|---|---|---|---|---|---|---|---|---|---|
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 304L | 8000 | 193 | 17.2 | 17.8 | 18.4 | 16.2 | 21.5 | 500 | 720 |
Choose from an extensive selection of DIN 1.4307 ferrule fittings and 304L SS Push Fit Fittings dimensions and sizes for a precise fit in your setups
| Tube OD (in) | Thread Size (in) | Hex Flat (in) |
|---|---|---|
| 1/16 | 1/16 | 0.31 |
| 1/8 | 1/8 | 0.38 |
| 3/16 | 1/8 | 0.38 |
| 1/4 | 1/4 | 0.46 |
| 5/16 | 1/4 | 0.46 |
| 3/8 | 3/8 | 0.54 |
| 1/2 | 1/2 | 0.71 |
| 5/8 | 1/2 | 0.71 |
| 3/4 | 3/4 | 0.83 |
| 7/8 | 3/4 | 0.83 |
| 1 | 1 | 1.02 |
| Dash Size | Nominal Tube/Pipe Size | SAE100R2 | National Pipe Tapered Fuel (NPTF) | National Pipe Straight Mechanical (NPSM) | JIC 37° Flare Hydraulic SAE J514 | Flareless Compression SAE J514 | ||
| Male | Female | Female Swivel | Male | Female Swivel | ||||
| -02 | 1/8″ | 10000 | 5000 | 6000 | ||||
| -04 | 1/4″ | 5000 | 9500 | 4500 | 5000 | 8500 | 5500 | 6000 |
| -05 | 5/16″ | 4250 | 8500 | 5000 | ||||
| -06 | 3/8″ | 4000 | 8000 | 3500 | 4000 | 7000 | 4000 | 6000 |
| -08 | 1/2″ | 3500 | 6000 | 3500 | 3500 | 6000 | 4000 | 6000 |
| -10 | 5/8″ | 2750 | 5500 | 3000 | 5000 | |||
| -12 | 3/4″ | 2250 | 5000 | 3000 | 3500 | 4000 | 3000 | 4500 |
| -14 | 7/8″ | 2000 | 4000 | 3000 | ||||
| -16 | 1″ | 2000 | 4000 | 2500 | 3000 | 3500 | 2500 | 4000 |
| -20 | 1-1/4″ | 1625 | 3000 | 2000 | 2000 | 3500 | 2000 | |
| -24 | 1-1/2″ | 1250 | 2000 | 1500 | 1500 | 2000 | 1500 | |
| -32 | 2″ | 1125 | 2000 | 1400 | 1500 | 1250 | 1250 | |
Exporter of AISI 304L Push-To-Connect Fittings and Alloy 304L Pneumatic Fittings, ensuring hassle-free installation and significant cost reductions on labor
Application of 304l SS Bulkhead Reducer
- Industrial machinery
- Textile industry
- Brewing equipment
- Construction and architecture
- Power generation
Packaging of 304l Stainless steel tube elbow
- Plastic or Paper Sleeves
- Wooden Crates
- Cardboard Boxes
- Palletizing
- Strapping
Frequently asked questions
What is the typical sealing mechanism used in stainless steel 304L tube fittings?
Stainless steel 304L tube fittings commonly use compression-type fittings with ferrules for secure and leak-free connections.
Can UNS S30403 Reducer Union withstand cryogenic temperatures?
Yes, UNS S30403 Reducer Union are often suitable for cryogenic applications due to their low-temperature toughness and resistance.
Do 304l SS Bulkhead Reducer require special tools for installation?
No, 304l SS Bulkhead Reducer can be easily installed using standard hand tools, making them convenient for various applications.
Are SS 304L compression fittings available in different connection types?
Yes, SS 304L compression fittings can be found in various connection types such as compression, NPT (National Pipe Thread), and butt-weld for versatility.
What industries commonly utilize 304l Stainless steel tube elbow?
304l Stainless steel tube elbow find applications in industries such as petrochemical, pharmaceutical, food processing, and oil and gas due to their corrosion resistance and durability.
