Choose us as your SS 316L female elbow manufacturer in India
Stainless Steel 316L Instrumentation Fittings are essential in many sectors because they provide durability, resistance, and flexibility in fluid control systems. Fit-lok, a major stockist, manufacturer, and trader, is dedicated to supplying high-quality SS 316L female elbow that suit the market’s changing expectations. Our wide product line is intended to provide optimal performance and dependability in a variety of applications.
Stainless steel 316L compression fittings is an austenitic stainless steel alloy that contains molybdenum. This stainless steel has excellent corrosion resistance qualities, especially against pitting and crevice corrosion. 316L stainless steel tube fittings are critical components of fluid control systems, allowing pipelines and tubing to function properly and reliably. Instrumentation fittings made of stainless steel 316L are specifically engineered to assure leak-free connections, efficient flow control, and durability to hostile environments.
Exporter of ASTM A276 316L instrument fittings and SUS 316L instrument tube fittings, providing efficient installation and notable labor cost savings
We take pride in providing 316L stainless steel adapter fittings with exceptional features and superior performance at Fit-Lok. Our fittings are designed to last a long time and withstand harsh operating conditions. Our DIN 1.4404 connectors include the following main features:
Resistance to pitting and crevice corrosion: Stainless Steel 316L’s molybdenum content increases its resistance to pitting and crevice corrosion, making it appropriate for severe situations. Low carbon content: Because 316L has a low carbon content, there is little risk of sensitization and subsequent intergranular corrosion. Elasticity at high temperatures: Our fittings have good elasticity and can endure high temperatures without impairing performance.
To maintain the greatest level of quality and performance in our goods, we adhere to international manufacturing standards. Our UNS S31603 high pressure fittings meet ASTM A182 requirements, ensuring its dependability and adaptability for a wide range of industrial applications. Furthermore, we have strong quality assurance measures in place, including extensive testing and inspection procedures, to ensure that fittings meet or surpass customer standards.
Table of content
- Stainless steel 316L tube fittings Specification
- Types of stainless steel 316L compression fittings
- 316L stainless steel tube fittings chemical composition
- stainless steel 316L instrumentation fittings mechanical composition
- 316L stainless steel adapter fittings equivalent grade
- Size chart of DIN 1.4404 connectors
- ASTM A182 F316L pipe connectors Pressure rating
| Types | Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories |
|---|---|
| Sizes | 1/8’’ to 2’’ and 3mm to 50mm |
| Ends | Threaded, Welding, JIC |
| Pressure Rating | 1000 Psi, 3000 Psi, 6000 Psi, 10000 Psi |
| Threads | NPT , BSPT, BSPP |
316L stainless steel adapter fittings
DIN 1.4404 connectors
ASTM A182 F316L pipe connectors
UNS S31603 high pressure fittings
316L stainless steel compression fittings
AISI 316L npt tube fittings
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
Choose the perfect 316L stainless steel compression fittings and AISI 316L npt tube fittings dimensions and sizes for your project requirements
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17-11-02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
Benefit from cost-effective 316L SS adapter fittings and DIN 1.4404 connectors supply from trusted suppliers in India

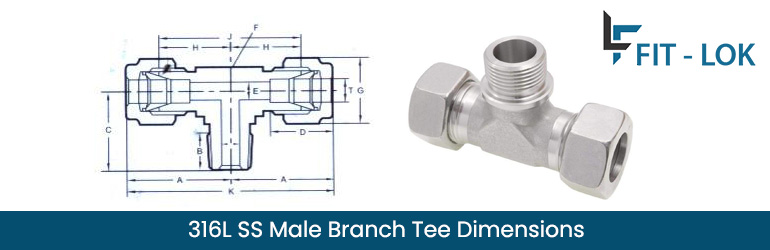

| Tube OD (in) | Thread Size (in) | Hex Flat (in) |
|---|---|---|
| 1/16 | 1/16 | 0.31 |
| 1/8 | 1/8 | 0.38 |
| 3/16 | 1/8 | 0.38 |
| 1/4 | 1/4 | 0.46 |
| 5/16 | 1/4 | 0.46 |
| 3/8 | 3/8 | 0.54 |
| 1/2 | 1/2 | 0.71 |
| 5/8 | 1/2 | 0.71 |
| 3/4 | 3/4 | 0.83 |
| 7/8 | 3/4 | 0.83 |
| 1 | 1 | 1.02 |
| Dash Size | Nominal Tube/Pipe Size | SAE100R2 | National Pipe Tapered Fuel (NPTF) | National Pipe Straight Mechanical (NPSM) | JIC 37° Flare Hydraulic SAE J514 | Flareless Compression SAE J514 | ||
| Male | Female | Female Swivel | Male | Female Swivel | ||||
| -02 | 1/8″ | 10000 | 5000 | 6000 | ||||
| -04 | 1/4″ | 5000 | 9500 | 4500 | 5000 | 8500 | 5500 | 6000 |
| -05 | 5/16″ | 4250 | 8500 | 5000 | ||||
| -06 | 3/8″ | 4000 | 8000 | 3500 | 4000 | 7000 | 4000 | 6000 |
| -08 | 1/2″ | 3500 | 6000 | 3500 | 3500 | 6000 | 4000 | 6000 |
| -10 | 5/8″ | 2750 | 5500 | 3000 | 5000 | |||
| -12 | 3/4″ | 2250 | 5000 | 3000 | 3500 | 4000 | 3000 | 4500 |
| -14 | 7/8″ | 2000 | 4000 | 3000 | ||||
| -16 | 1″ | 2000 | 4000 | 2500 | 3000 | 3500 | 2500 | 4000 |
| -20 | 1-1/4″ | 1625 | 3000 | 2000 | 2000 | 3500 | 2000 | |
| -24 | 1-1/2″ | 1250 | 2000 | 1500 | 1500 | 2000 | 1500 | |
| -32 | 2″ | 1125 | 2000 | 1400 | 1500 | 1250 | 1250 | |
Specialist in manufacturing medium pressure ASTM A182 F316L pipe connectors and UNS S31603 high pressure fittings for various applications
Application of ASTM A182 F316L pipe connectors
- Brewing equipment
- Aerospace industry
- Automotive manufacturing
- Marine applications
- Dairy equipment
Packaging of SS 316L compression fittings
- Plastic or Paper Sleeves
- Wooden Crates
- Cardboard Boxes
- Palletizing
- Strapping
Frequently asked questions
What is the temperature range for stainless steel 316L instrumentation fittings?
Stainless steel 316L instrumentation fittings can typically operate in temperatures ranging from -325°F to 1500°F (-198°C to 816°C).
What is the maximum temperature withstand capability of ASTM A182 F316L pipe connectors?
ASTM A182 F316L pipe connectors can withstand temperatures up to approximately 1700°F (927°C) for short durations.
What is the pressure rating for SUS 316L instrument tube fittings?
SUS 316L instrument tube fittings have pressure ratings that can vary depending on the size and design, but they can typically handle high-pressure applications up to several thousand psi.
What is the size range available for AISI 316L npt tube fittings?
AISI 316L npt tube fittings are available in a wide range of sizes, ranging from small diameters of 1/16 inch (1.6 mm) up to larger diameters of 2 inches (50.8 mm) or more.
What is the melting point of SS 316L compression fittings?
The melting point of SS 316L compression fittings is approximately 2500°F (1370°C).
