We are reliable UNS S31635 SAE Flange manufacturer in India
Refer sizes of AISI 316Ti SAE Threaded Flanges
Table of content
| Type | Stainless Steel 316Ti Hydraulic SAE Flanges |
| DESIGN | SAE J518 C / ISO 6162 / ISO 6164 / JIS B2291 |
| MATERIAL | CS, SS 304, SS 316, SS 316 TI, ALLOY STEEL, DUPLEX, SUPER DUPLEX, INCONEL, MONEL, HASTELLOY, SMO 254, 904 L, TITANIUM |
| WORKING PRESSURE | UPTO 210 BAR (3000 PSI) & 420 BAR (6000 PSI) & 700 BAR (10,000 PSI) CUSTOMISED |
| CODE | CODE 61 FLANGE (3000 PSI) & CODE 62 FLANGE (6000 PSI) |
| SIZE RANGE | 3/8″ (DN 10) TO 5″ (DN 125) |
| CONNECTIONS | BUTT WELD, SOCKET WELD, THREADED (BSPP, NPT, METRIC, JIC) |
| BODY TYPE | FORGED, BAR STOCK |
| FLANGE ACCESSORIES | O-RING, BOLT, NUT, WASHER |
| O-RING MATERAL | NITRILE, BUNA 90 SHORE, VITON 85-90 SHORE |
| BOLTS MATERIAL | HIGH TENSILE 8.8 GR, 10.9 GR, 12.9 GR, SS 304, SS316 |
| SURFACE | CARBON STEEL – BLACK PHOSPHATED, TRIVALENT ZINC PLATED, |
| STAINLESS STEEL – ELECTROPLATING, NATURAL FINISH |

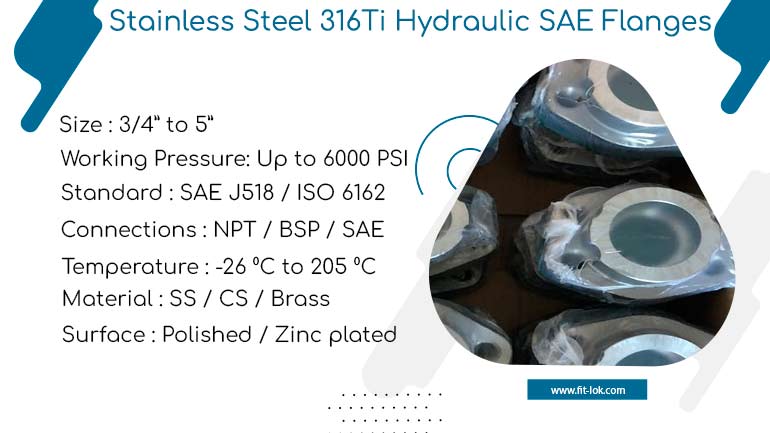

Stainless Steel 316Ti Hydraulic SAE Flanges
UNS S31635 SAE Flange
AISI 316Ti SAE Threaded Flanges
| Working Pressure Kg/cm2 | Size | A | B | C | D | E | F | G | H | L | Screws (Metric) | Screws (UNC) | Or Type | Weight (Kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 414 | 1/2″ | 21,5 | 15.8 | 40,49 | 57 | 18,24 | 46 | 36 | 16 | 9 | M8x30 | 5/16×1″1/4 | 4075 | 0,24 |
| 414 | 1/2″ (3/8″) | 17,5 | 15.8 | 40,49 | 57 | 18,24 | 46 | 36 | 16 | 9 | M8x30 | 5/16×1″1/4 | 4075 | 0,22 |
| 414 | 3/4″ | 28,0 | 20.9 | 50,80 | 71 | 23,80 | 55 | 35 | 21 | 11 | M10x40 | 3/8×1″1/2 | 4100 | 0,48 |
| 414 | 1″ | 34,0 | 26.6 | 57,15 | 79 | 27,76 | 68 | 41 | 21 | 13 | M12x45 | 7/16×1″3/4 | 4131 | 0,64 |
| 378 | 1″1/4 | 42,8 | 35.1 | 66,68 | 93 | 31,75 | 78 | 44 | 25 | 15 * | M14x45 | 1/2×1″3/4 | 4150 | 1,00 |
| 320 | 1″1/2 | 48,6 | 40.9 | 79,38 | 112 | 36,50 | 94 | 55 | 30 | 17 | M16x50 | 5/8×2″ | 4187 | 1,68 |
| 250 | 2″ | 61,0 | 52.5 | 96,82 | 134 | 44,45 | 114 | 65 | 37 | 21 | M20x70 | 3/4×2″1/2 | 4225 | 2,86 |
| 230 | 2″1/2 | 76,6 | 62 | 123,80 | 180 | 58,70 | 152 | 80 | 45 | 26 | M24x80 | – | 4275 | 6,40 |
| 200 | 3″ | 90,0 | 77.9 | 152,40 | 208 | 71,40 | 178 | 90 | 55 | 33 | M30x100 | – | 4337 | – |
| Metric Size | Flange Size | Screw Thread | Screw Torque (NM) |
| 13 | 1/2″ | M8 | 32 |
| 19 | 3/4″ | M10 | 70 |
| 25 | 1″ | M10 | 70 |
| 32 | 1 1/4″ | M10 | 70 |
| 38 | 1 1/2″ | M12 | 130 |
| 51 | 2″ | M12 | 130 |
| 64 | 2 1/2″ | M12 | 130 |
| 76 | 3″ | M16 | 295 |
| 89 | 3 1/2″ | M16 | 295 |
| 102 | 4″ | M16 | 295 |
| 127 | 5″ | M16 | 295 |
- Versatility
- Leakage Prevention
- Material Variety
- Standardized Design
- High Pressure Capability
- Aluminium Die-Casting Machinery
- Sintering Machinery
- Steel Mills
- Industrial Hydraulics
- Injection Moulding Machinery
- Hydraulic Presses
