Alloy 904l Male Elbow manufacturer in India
Fit-lok is a leading manufacturer of Stainless Steel 904L Instrumentation Fittings in a variety of sizes and configurations. Our dedication to quality is unwavering, and we aim for the highest standards in every product we offer. We source top raw materials from reliable vendors to ensure great quality. Our team is made up of highly skilled and technically proficient experts who work together to create globally recognized products. Our manufacturing factory, which is outfitted with cutting-edge technology and machinery, enables us to provide high-quality fits that exceed customer expectations. As a customer-focused company, we prioritize meeting our client’s needs and wishes. To do this, we offer our products in unique forms, sizes, lengths, dimensions, and thicknesses according on their specific requirements.
Check out the dimensional stability and chemical resistance properties of our stainless steel 904L high pressure fittings and DIN 1.4539 gaugeable tube fittings for reliable performance.
Fit-lok prioritizes quality throughout the manufacturing process. To ensure the creation of high-quality products, we use premium quality raw materials from reputable vendors. Our Alloy 904l Male Elbow are meticulously monitored and tested to ensure that they fulfill the severe criteria of industry standards. Because of our dedication to quality, we are able to provide stainless steel 904L high pressure fittings that exceed our customers’ expectations.
Our team is made up of highly experienced individuals who have vast technical knowledge in the field. Their experience and skills help to produce globally recognized 904L stainless steel tube fittings. We offer customization choices for our ASTM A182 F904L adapter fittings to match the different needs of our customers.
Table of content
- Stainless steel 904L tube fittings Specification
- Types of Stainless steel 904L compression fittings
- 904L stainless steel tube fittings chemical composition
- ASTM B649 UNS N08904 instrumentation fittings mechanical composition
- stainless steel 904L high pressure fittings equivalent grade
- Size chart of 904L stainless steel instrumentation tube fittings
- ASTM A479 904L tube connectors Pressure rating
| Types | Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories |
|---|---|
| Sizes | 1/8’’ to 2’’ and 3mm to 50mm |
| Ends | Threaded, Welding, JIC |
| Pressure Rating | 1000 Psi, 3000 Psi, 6000 Psi, 10000 Psi |
| Threads | NPT , BSPT, BSPP |
stainless steel 904L high pressure fittings
904L stainless steel instrumentation tube fittings
DIN 1.4539 gaugeable tube fittings
ASTM A182 F904L adapter fittings
UNS N08904 connectors
ASTM A479 904L tube connectors
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
| SS 904L | 0.020 max | 2.00 max | 1.00 max | 0.040 max | 0.030 max | 19.00 – 23.00 | 4.00 – 5.00 max | 23.00 – 28.00 | 1.00 – 2.00 |
We specialize in offering ASTM A182 F904L adapter fittings and UNS N08904 connectors that are suitable for both instrumentation and industrial applications.
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35 % |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 904L | 8000 | 200 | 15.0 | – | – | 13.0 | – | 500 | 850 |
Source ASTM A479 904L tube connectors and 904L stainless steel compression fittings at competitive prices from the exporter.
| Tube OD (in) | Thread Size (in) | Hex Flat (in) |
|---|---|---|
| 1/16 | 1/16 | 0.31 |
| 1/8 | 1/8 | 0.38 |
| 3/16 | 1/8 | 0.38 |
| 1/4 | 1/4 | 0.46 |
| 5/16 | 1/4 | 0.46 |
| 3/8 | 3/8 | 0.54 |
| 1/2 | 1/2 | 0.71 |
| 5/8 | 1/2 | 0.71 |
| 3/4 | 3/4 | 0.83 |
| 7/8 | 3/4 | 0.83 |
| 1 | 1 | 1.02 |
| Dash Size | Nominal Tube/Pipe Size | SAE100R2 | National Pipe Tapered Fuel (NPTF) | National Pipe Straight Mechanical (NPSM) | JIC 37° Flare Hydraulic SAE J514 | Flareless Compression SAE J514 | ||
| Male | Female | Female Swivel | Male | Female Swivel | ||||
| -02 | 1/8″ | 10000 | 5000 | 6000 | ||||
| -04 | 1/4″ | 5000 | 9500 | 4500 | 5000 | 8500 | 5500 | 6000 |
| -05 | 5/16″ | 4250 | 8500 | 5000 | ||||
| -06 | 3/8″ | 4000 | 8000 | 3500 | 4000 | 7000 | 4000 | 6000 |
| -08 | 1/2″ | 3500 | 6000 | 3500 | 3500 | 6000 | 4000 | 6000 |
| -10 | 5/8″ | 2750 | 5500 | 3000 | 5000 | |||
| -12 | 3/4″ | 2250 | 5000 | 3000 | 3500 | 4000 | 3000 | 4500 |
| -14 | 7/8″ | 2000 | 4000 | 3000 | ||||
| -16 | 1″ | 2000 | 4000 | 2500 | 3000 | 3500 | 2500 | 4000 |
| -20 | 1-1/4″ | 1625 | 3000 | 2000 | 2000 | 3500 | 2000 | |
| -24 | 1-1/2″ | 1250 | 2000 | 1500 | 1500 | 2000 | 1500 | |
| -32 | 2″ | 1125 | 2000 | 1400 | 1500 | 1250 | 1250 | |

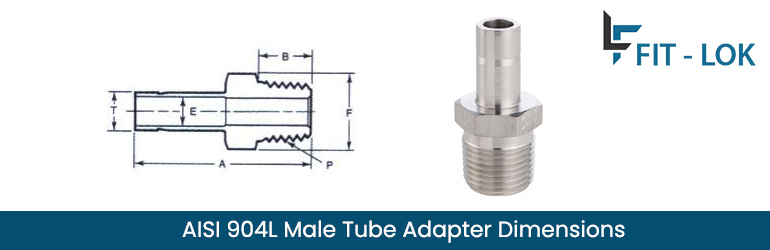

Precise SUS 904L instrument fittings and AISI 904L npt tube fittings dimensions and sizes to meet your requirements
Application of DIN 1.4539 gaugeable tube fittings
- Aerospace industry
- Marine applications
- Water treatment
- HVAC systems
- Automotive applications
Packaging of stainless steel 904L instrumentation fittings
- Plastic or Paper Sleeves
- Wooden Crates
- Cardboard Boxes
- Palletizing
- Strapping
Frequently asked questions
What is the corrosion resistance of stainless steel 904L instrumentation fittings?
Stainless steel 904L instrumentation fittings offer excellent resistance to a wide range of corrosive environments, including acids, pitting, and crevice corrosion.
Can stainless steel 904L instrumentation fittings be used in seawater applications?
Yes, stainless steel 904L instrumentation fittings are highly resistant to corrosion in seawater, making them suitable for marine environments.
Are SS 904L high pressure fittings suitable for high-temperature applications?
Yes, SS 904L high pressure fittings exhibit good high-temperature strength and can withstand elevated temperatures.
Do DIN 1.4539 gaugeable tube fittings have good weldability?
Yes, DIN 1.4539 gaugeable tube fittings have good weldability, allowing for easy installation and assembly using common welding techniques.
What industries commonly utilize stainless steel 904L high pressure fittings?
stainless steel 904L high pressure fittings find applications in industries such as chemical processing, pharmaceuticals, and offshore oil and gas, where corrosion resistance and durability are crucial.
